ZYX Flamingo单反相机控制线/佳能CANON ZYX32

佳能（CANON）控制线
产品说明：
1、使用机型：Canon M Series  Canon 5D Series
2、支持功能：快门 /录像
3、使用方法：
(1）连接：
a.首先需要连接手机APP，在“通用设置”页面，选择相机品牌为“CANON”。

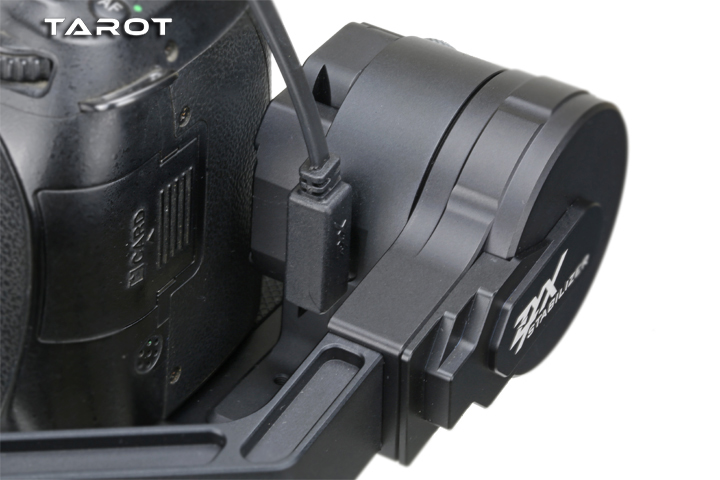

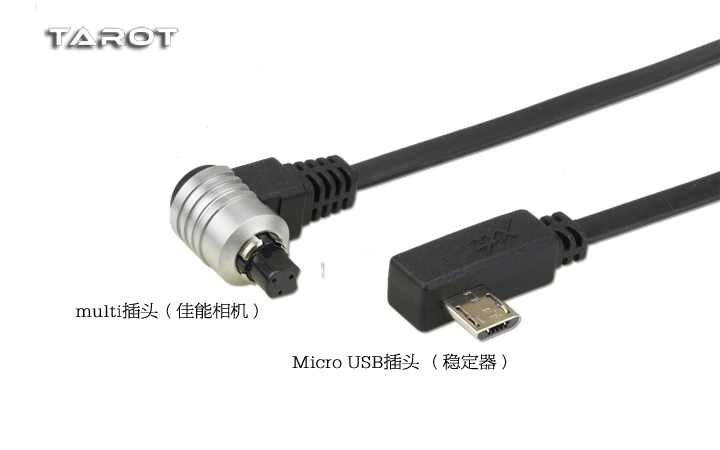

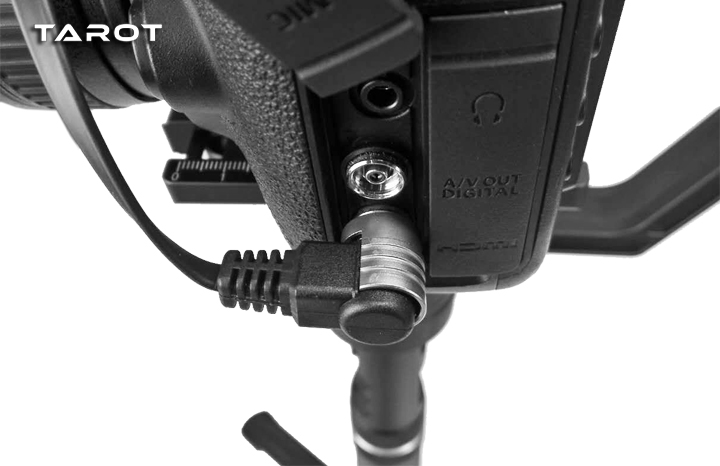

b.首先将控制线的Micro USB插头与稳定器俯仰轴电机内侧的相机控制接口相连，然后另一头连接相机的控制接口。
(2）操作：
a.快门（包含对焦动作）：单击“电源按键”实现单次拍照。
b.对焦：推动手柄上面的拨杆往“W”方向（上）实现广角，往“T”方向（下）实现对焦。

 CANON Control Cable
1.Supported devices: other models of 5D series
2.Supported functions: shutter/picture recording
3.How to Use:
(1)Connection:
a. First, connect APP of your phone, and select camera brand “CANON” in “General Setting” interface.
b.  First connect Micro USB plug of control line with camera control interface on the inner side of pitch axis motor of stabilizer, and then fix the other end (with infrared lamp) on the stabilizer and align it with infrared access port of camera.
(2) Operation:
a. Shutter (including focusing action): click “power button” to realize one-time capture.
b. Zoom: push driving lever on handle towards  “W” (up) to or “T” (down) to realize zoom.

产品规格：
佳能（CANON）控制线×1
长度：33 cm
重量：12.5 g
